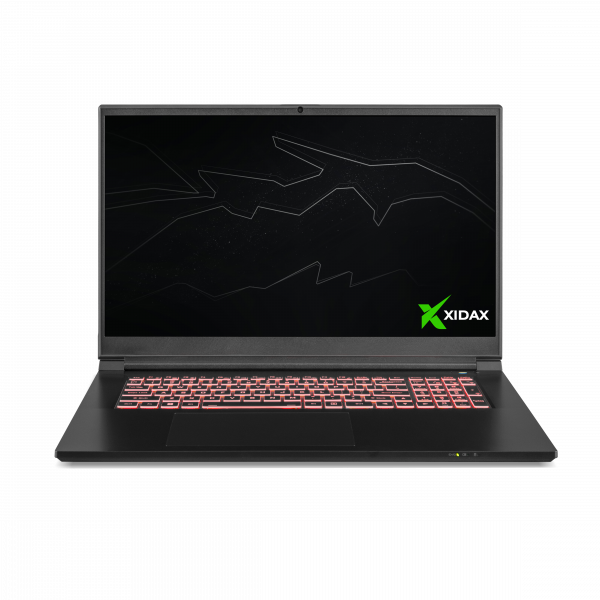

XM-6 17" RTX 3050 I9 13900H
Processor
13th Gen Intel Core i9-13900H ( Max Turbo boost 5.40 GHz ), 6 P-cores & 8 E-cores / 20 thread, 24MB Smart Cache
Memory
Supports Dual Channel DDR4
Two 260Pin SODIMM sockets, support for DDR4 up to 3200MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module.
Display
17.3” Full HD (1920x1080) 144Hz Wide View Angle, Matte Finished
Graphics
Processor Switchable GPU by Microsoft Hybrid Graphics - NVIDIA GeForce RTX 3050 GPU / Intel Graphics
Support 3 active displays
NVIDIA GeForce RTX 3050 Laptop GPU
- 4GB GDDR6 Video RAM
- Microsoft DirectX 12
- NVIDIA CUDA Technology
- Support PCIe Gen4
- Maximum TGP: 95 W (including 15W Dynamic Boost 2.0)
Intel Iris Xe Graphics (Integrated in Core i9-13900H processor)
- Intel Xe Micro architecture
- 8K60 HDR Support
- Variable Rate Shading
- Microsoft DirectX 12
- Rec. 2020 (Wide Color Gamut)
Storage
One M.2 2280 SSD PCIe Gen 3x4 interface & one M.2 2280 SSD PCIe Gen 4x4 interface
Audio System
High Definition audio interface
Built-in Array Microphone
2 Built-in Speakers
Sound Blaster Studio
Pointing Device
Built in Click pad with Microsoft PTP multi-gesture and scrolling function
Keyboard
Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
I/O Ports
1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4 output Port
1 USB 2.0 Port (Type A)
1 USB 3.2 Gen 1 Port (Type A)
2 USB 3.2 Gen 2 Ports (Type C)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 Microphone Jack
1 RJ-45 LAN (10/100/1000Mbps)
Card Reader
Micro SD Card reader
Slots
Three M.2 Card Slots
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface
- 2nd for SSD M.2 2280 Card with PCIe Gen 3x4 interface
- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface
Communication
Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless-Wi-Fi 6E AX211 + Bluetooth, M.2 interface
Security
Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
Power System
Built in 4 cells Polymer battery pack 54WH
Full Range AC-in 100~240V, 50~60Hz, 150W AC Adapter, DC output 20V, 7.5A or 19.5V, 7.7A
OS Support
Windows 11 (64-bit)
Certificate
Windows 11 (64-bit) Logo
HDMI Logo
Physical Characteristic
5.31 LBs including bare bone and 54WH Battery Pack
15.63" (w) x 10.32" (d) x 0.98" (h)
Other Features
Built-in 1.0M HD Video Camera
FlexiCharger
Windows Mixed Reality Compatible
Intel DTT (Dynamic Tuning Technology)
Specifications are subject to change without notice
XM-6 17" RTX 4050 I9 13900HX
CPU 13th Generation Intel Core i9-13900HX ( Max Turbo Boost 5.4 GHz ), 8 P-cores & 16 E-cores / 32 threads, 36MB Smart Cache
Chipset Intel HM770 Express Chipset
Display 17.3” Full HD (1920x1080) 144Hz, Wide View Angle, 72% NTSC Display, Matte Finished
Memory
Supports Dual Channel DDR5
Two 262 pins SODIMM sockets, support for DDR5 up to 4800MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module
Video Controller
Switchable GPU by Microsoft Hybrid Graphics - NVIDIA GeForce RTX 4050 GPU / Intel Graphics
Support 4 active displays
NVIDIA GeForce RTX 4050 Laptop GPU
- 6GB GDDR6 Video RAM
- NVIDIA Ada Lovelace Architecture
- Microsoft DirectX 12
- NVIDIA CUDA Technology
- Support PCIe Gen4
- Dynamic Boost 2.0
Intel UHD Graphics (Integrated in 13th Gen Core i9 CPU)
- HDR Support
- Rec. 2020 (Wide Color Gamut)
- Microsoft DirectX 12 compatible
Maximum TGP: 140 W (including 25W Dynamic Boost 2.0)
Storage Two M.2 2280 SSD PCIe Gen 4x4 interface (RAID 0/1)
Sound System
High Definition audio interface
Built-in Array Microphone
Built-in two speakers
Sound Blaster Studio
Keyboard Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
Pointing Device Built in Click pad with Microsoft PTP multi-gesture and scrolling function
I/O Ports
1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4
1 Thunderbolt 4 Port (Type C)
1 USB 2.0 Port (Type A)
1 USB 3.2 Gen 1 Port (Type A)
1 USB 3.2 Gen 2 Port (Type C)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 Microphone Jack
1 RJ-45 LAN (10/100/1000Mbps)
Card Reader Micro SD Card reader
Slots
Three M.2 Card Slots,
- 1st for WLAN Combo M.2 2230 Card with PCIe / USB / CNVi interface (E key)
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface (M key)
- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface (M key)
Communication Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless Wi-Fi 6E AX211 + Bluetooth, M.2 interface
Other Features
Built-in 1.0M HD Video Camera
FlexiCharger
Virtual Reality ready
Windows Mixed Reality compatible
Intel DTT (Dynamic Tuning Technology)
Power Full Range 280W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 14A
Built in 4 cells Polymer battery pack 73WH
Security
Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
TPM 2.0
OS Support Windows 11 (64-bit)
Certificate Windows 11 (64-bit) Logo
HDMI Logo
Dimension 15.63” (w) x 10.32” (d) x 1.11” (h)
6.28 lbs. including Bare bone and 73WH Battery Pack
XM-6 17" RTX 4060 I9 13900HX
CPU 13th Generation Intel Core i9-13900HX ( Max Turbo Boost 5.4 GHz ), 8 P-cores & 16 E-cores / 32 threads, 36MB Smart Cache
Chipset Intel HM770 Express Chipset
Display 17.3” Full HD (1920x1080) 144Hz, Wide View Angle, 72% NTSC Display, Matte Finished
Memory
Supports Dual Channel DDR5
Two 262 pins SODIMM sockets, support for DDR5 up to 4800MHz (Real operation frequency depends on processor)
Expandable up to 64GB, depends on 8GB/16GB/32GB SODIMM module
Video Controller
Switchable GPU by Microsoft Hybrid Graphics - NVIDIA GeForce RTX 4060 GPU / Intel Graphics
Support 4 active displays
NVIDIA GeForce RTX 4060 Laptop GPU
- 8GB GDDR6 Video RAM
- NVIDIA Ada Lovelace Architecture
- Microsoft DirectX 12
- NVIDIA CUDA Technology
- Support PCIe Gen4
- Dynamic Boost 2.0
Intel UHD Graphics (Integrated in 13th Gen Core i9 CPU)
- HDR Support
- Rec. 2020 (Wide Color Gamut)
- Microsoft DirectX 12 compatible
Maximum TGP: 140 W (including 25W Dynamic Boost 2.0)
Storage Two M.2 2280 SSD PCIe Gen 4x4 interface (RAID 0/1)
Sound System
High Definition audio interface
Built-in Array Microphone
Built-in two speakers
Sound Blaster Studio
Keyboard Multi languages, Single Zone Multi-Color illuminated full size keyboard with numeric pad. (15 colors to select)
Pointing Device Built in Click pad with Microsoft PTP multi-gesture and scrolling function
I/O Ports
1 HDMI output Port (with HDCP)
1 Mini DisplayPort 1.4
1 Thunderbolt 4 Port (Type C)
1 USB 2.0 Port (Type A)
1 USB 3.2 Gen 1 Port (Type A)
1 USB 3.2 Gen 2 Port (Type C)
1 2-in-1 Audio Jack (Headphone / Microphone)
1 Microphone Jack
1 RJ-45 LAN (10/100/1000Mbps)
Card Reader Micro SD Card reader
Slots
Three M.2 Card Slots,
- 1st for WLAN Combo M.2 2230 Card with PCIe / USB / CNVi interface (E key)
- 2nd for SSD M.2 2280 Card with PCIe Gen 4x4 interface (M key)
- 3rd for SSD M.2 2280 Card with PCIe Gen 4x4 interface (M key)
Communication Built-in Gigabit Ethernet LAN
Intel Dual Band Wireless Wi-Fi 6E AX211 + Bluetooth, M.2 interface
Other Features
Built-in 1.0M HD Video Camera
FlexiCharger
Virtual Reality ready
Windows Mixed Reality compatible
Intel DTT (Dynamic Tuning Technology)
Power Full Range 280W AC Adapter, AC-in 100~240V, 50~60Hz, DC output 20V, 14A
Built in 4 cells Polymer battery pack 73WH
Security
Security (Kensington Type) Lock Slot
Intel PTT (Platform Trust Technology)
TPM 2.0
OS Support Windows 11 (64-bit)
Certificate Windows 11 (64-bit) Logo
HDMI Logo
Dimension 15.63” (w) x 10.32” (d) x 1.11” (h)
6.28 lbs. including Bare bone and 73WH Battery Pac
