XIDAX XEN WHITE
Product Specification：
- Model：XEN WHITE
- Dimension: 8.07 (W) * 15.4"(H) *17.32"(D) (Vol: 35.4L)
*Depth does not include the PCI brackets outside the chassis, height does not include case stand
8.07" (W) * 16.02" (H) * 17.79" (D) (overall size)
- Material：0.6mm+0.7mm steel panel
- Drive Bay：2.5〞SSD*3+3.5〞HDD*2
- Motherboard：ATX / M-ATX
- PCI expansion slots：7
- Front I/O：USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
- Power supply support：ATX
- CPU cooler support：168mm
- Graphics card support：330-400mm
- Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
- Radiator support： Top 240/280/360*1 Rear 120*1 Bottom 240/360*1
- CASE ONLY Weight: Net 14.94LBS

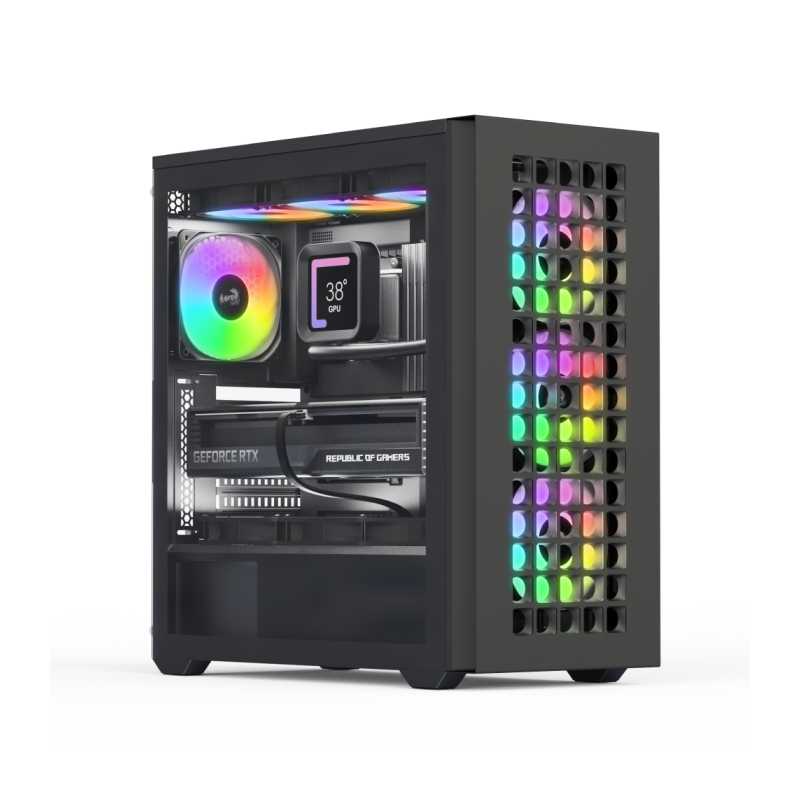

D502A CASE BLACK
-
Case Type:
-
-
Mid Tower
-
-
Color:
-
Black
-
-
Body Material:
-
SPCC
-
-
Front Panel Material:
-
ABS
-
SPCC
-
-
Steel Thickness:
-
0.5mm
-
-
Motherboards Supported:
-
ATX
-
Micro ATX
-
Mini-ITX
-
-
Case Dimensions (Internal):
-
213 x 462 x 412mm (W x H x D)
-
-
Case Dimensions (Overall):
-
213 x 476.5 x 461mm (W x H x D)
-
-
Drive Bays:
-
3.5” Drive Bays: 2 Max. (2 x 3.5”)
-
2.5” Drive Bays: 4 Max. (3 x 3.5”)
-
-
Expansion Slots:
-
7
-
-
GPU Clearance:
-
Supports GPUs up to 400mm (without front radiator)
-
-
CPU Cooler Clearance:
-
Supports CPU coolers up to 171mm
-
-
Air Cooling Support:
-
Front: 120mm x 3 or 140mm x 3 (Max.)
-
Includes 120mm ARGB fan x 3
-
-
Top: 120mm x 3 or 140mm x 2 (Max.)
-
Side: 120mm x 2 (Max.)
-
PSU Shroud: 120mm x 2 (Max.)
-
Rear: 120mm x 1 (Max.)
-
Includes 120mm ARGB fan x 1
-
-
-
Liquid Cooling Support:
-
Front: 120 / 140 / 240 / 280 / 360mm Radiator (Optional)
-
Top: 120 / 140 / 240 / 280 / 360mm Radiator (Optional)
-
For 140 / 280mm radiators, max motherboard component height: 30mm
-
-
Rear: 120mm Radiator (Optional)
-
-
I/O Ports:
-
Type-C x 1
-
USB 3.0 x 2
-
HD Audio & Mic
-
-
Internal Cable Management Depth:
-
19.6mm
-
-
Power Supply:
-
ATX PSU (including cables, up to 220mm) (Optional)
-
EDGE LIGHT
- 240 mm x 520 mm x 510 mm (W x H x D)
- 9.5 in x 20.5 in x 20.1 in
- Midtower
- Powder coated steel chassis
- Tempered glass side panel
- Sound Dampening Panels
- ATX, Micro ATX, Mini ITX,
- E-ATX *(up to 280mm wide)
- 1x USB 3.1 GEN 2 Type-C, 2x USB 3.0, Power button, Microphone, Headphone, Reset.
- Tempered Glass (also available with closed panel)
ONAMI BLACK
- Dimension：11.33" (W) * 17.24" (D) * 16.33" (H)
- Material：0.7mm steel
- Glass：4mm tempered glass (2H hardness explosion-proof protective film is applied on the glass surface, no need to tear it off when using)
- Motherboard：ITX / M-ATX / ATX
- Drive Bay：3.5" HDD*2/2.5" SSD*1 or 2.5" SSD*2/3.5" HDD*1
- Cooling Systerm：Top:120mm*3/140*2(optional); Bottom:120mm*3(optional); Side 120mm*3(optional); Rear 120mm*1(optional)
- Water Cooling: Top：360mm*1 or 280mm*1(optional); Bottom: 360mm*1(optional)
- Power Supply: ATX≤220mm
- CPU Cooler：165mm
- Video Card: ≤420mm
- Front IO Port: USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO*1+MIC*1(2 in 1）
- Expansion Solt：7
- Weight：19.75LBS
ONAMI WHITE
- Dimension：11.33" (W) * 17.24" (D) * 16.33" (H)
- Material：0.7mm steel
- Glass：4mm tempered glass (2H hardness explosion-proof protective film is applied on the glass surface, no need to tear it off when using)
- Motherboard：ITX / M-ATX / ATX
- Drive Bay：3.5" HDD*2/2.5" SSD*1 or 2.5" SSD*2/3.5" HDD*1
- Cooling Systerm：Top:120mm*3/140*2(optional); Bottom:120mm*3(optional); Side 120mm*3(optional); Rear 120mm*1(optional)
- Water Cooling: Top：360mm*1 or 280mm*1(optional); Bottom: 360mm*1(optional)
- Power Supply: ATX≤220mm
- CPU Cooler：165mm
- Video Card: ≤420mm
- Front IO Port: USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO*1+MIC*1(2 in 1）
- Expansion Solt：7
- Weight：19.75LBS
X-BOT CASE WHITE
Product Specification：
- Model：XEN BLACK
- Dimension: 8.07 (W) * 15.4"(H) *17.32"(D) (Vol: 35.4L)
*Depth does not include the PCI brackets outside the chassis, height does not include case stand
8.07" (W) * 16.02" (H) * 17.79" (D) (overall size)
- Material：0.6mm+0.7mm steel panel
- Drive Bay：2.5〞SSD*3+3.5〞HDD*2
- Motherboard：ATX / M-ATX
- PCI expansion slots：7
- Front I/O：USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
- Power supply support：ATX
- CPU cooler support：168mm
- Graphics card support：330-400mm
- Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
- Radiator support： Top 240/280/360*1 Rear 120*1 Bottom 240/360*1
- CASE ONLY Weight: Net 14.94LBS
TETRADON BLACK
DIMENSIONS (D) 522mm x (W) 304mm x (H) 531.9mm
MATERIAL Steel
4.0mm Tempered Glass
Aluminum
MOTHERBOARD SUPPORT E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
EXPANSION SLOT 8
STORAGE Behind MB Tray: 3 x 2.5” SSD
Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD
GPU LENGTH CLEARANCE 460mm (Max.)
CPU COOLER HEIGHT CLEARANCE 167mm (Max.)
PSU ATX (Under 220mm)
FAN SUPPORT Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
Bottom: 3 x 120mm / 3 x 140mm
Rear: Up to 2x 120mm
RADIATOR SUPPORT Top: 360 / 420 / 240 / 280mm
Side: 360 / 420 / 240 / 280mm
Bottom: 360 / 420 / 240 / 280mm
I/O PORTS 1 x Power Button
1 x Reset Button
4 x USB 3.0
1 x USB Type C
1 x Audio
1 x LED Color Button
1 x LED Mode Button
DUST FILTERS 1 x Bottom
1 x Top
2 x Side
