ONAMI BLACK
- Dimension：11.33" (W) * 17.24" (D) * 16.33" (H)
- Material：0.7mm steel
- Glass：4mm tempered glass (2H hardness explosion-proof protective film is applied on the glass surface, no need to tear it off when using)
- Motherboard：ITX / M-ATX / ATX
- Drive Bay：3.5" HDD*2/2.5" SSD*1 or 2.5" SSD*2/3.5" HDD*1
- Cooling Systerm：Top:120mm*3/140*2(optional); Bottom:120mm*3(optional); Side 120mm*3(optional); Rear 120mm*1(optional)
- Water Cooling: Top：360mm*1 or 280mm*1(optional); Bottom: 360mm*1(optional)
- Power Supply: ATX≤220mm
- CPU Cooler：165mm
- Video Card: ≤420mm
- Front IO Port: USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO*1+MIC*1(2 in 1）
- Expansion Solt：7
- Weight：19.75LBS
ONAMI WHITE
- Dimension：11.33" (W) * 17.24" (D) * 16.33" (H)
- Material：0.7mm steel
- Glass：4mm tempered glass (2H hardness explosion-proof protective film is applied on the glass surface, no need to tear it off when using)
- Motherboard：ITX / M-ATX / ATX
- Drive Bay：3.5" HDD*2/2.5" SSD*1 or 2.5" SSD*2/3.5" HDD*1
- Cooling Systerm：Top:120mm*3/140*2(optional); Bottom:120mm*3(optional); Side 120mm*3(optional); Rear 120mm*1(optional)
- Water Cooling: Top：360mm*1 or 280mm*1(optional); Bottom: 360mm*1(optional)
- Power Supply: ATX≤220mm
- CPU Cooler：165mm
- Video Card: ≤420mm
- Front IO Port: USB3.2 Gen2 Type-C*1 / USB3.0*2 / AUDIO*1+MIC*1(2 in 1）
- Expansion Solt：7
- Weight：19.75LBS

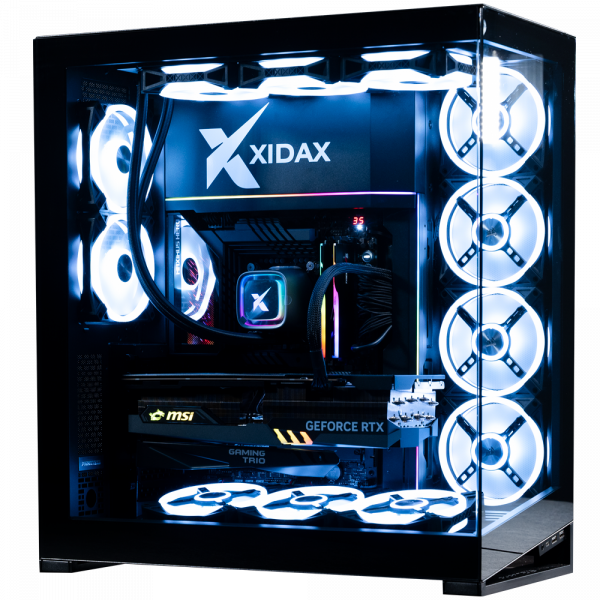

LEVIATHAN X BLACK
Dimension
239 x 477 x 528 mm / 9.4 x 18.8 x 20.8 in (WxDxH)
Form Factor
Mid Tower Chassis
Material(s)
Steel Chassis, Tempered Glass
Motherboard Support
ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm without GPU Support Bracket)
Front I/O
2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color
Connectors
Power Switch, Reset Switch, D-RGB Expansion, D-RGB Motherboard, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E
Window
Yes, Front and Side Tempered Glass
EDGE DARK NON TG
- 240 mm x 520 mm x 510 mm (W x H x D)
- 9.5 in x 20.5 in x 20.1 in
- Midtower
- Powder coated steel chassis
- Sound Dampening Panels
- ATX, Micro ATX, Mini ITX,
- E-ATX *(up to 280mm wide)
- 1x USB 3.1 GEN 2 Type-C, 2x USB 3.0, Power button, Microphone, Headphone, Reset.
- Tempered Glass (also available with closed panel)
VISION BLACK
DIMENSION (D) 480mm x ( W ) 304mm x (H) 464.5mm
MATERIAL Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum
MOTHERBOARD SUPPORT E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
EXPANSION SLOT 6+1
STORAGE Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSD
GPU LENGTH CLEARANCE 455mm (Max.)
CPU COOLER HEIGHT CLEARANCE 167mm (Max.)
PSU SUPPORT ATX (Under 220mm)
FAN SUPPORT Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm
RADIATOR SUPPORT Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm
I/O PORTS 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio
DUST FILTER Bottom × 1
VISION WHITE
DIMENSION (D) 480mm x ( W ) 304mm x (H) 464.5mm
MATERIAL Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum
MOTHERBOARD SUPPORT E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
EXPANSION SLOT 6+1
STORAGE Behind MB Tray: 3 x 2.5” SSD Hard Drive Cage: 2 X 3.5′′ HDD or 2.5′′ SSD
GPU LENGTH CLEARANCE 455mm (Max.)
CPU COOLER HEIGHT CLEARANCE 167mm (Max.)
PSU SUPPORT ATX (Under 220mm)
FAN SUPPORT Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm
RADIATOR SUPPORT Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm
I/O PORTS 1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio
DUST FILTER Bottom × 1
TETRADON WHITE
DIMENSIONS (D) 522mm x (W) 304mm x (H) 531.9mm
MATERIAL Steel
4.0mm Tempered Glass
Aluminum
MOTHERBOARD SUPPORT E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
EXPANSION SLOT 8
STORAGE Behind MB Tray: 3 x 2.5” SSD
Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD
GPU LENGTH CLEARANCE 460mm (Max.)
CPU COOLER HEIGHT CLEARANCE 167mm (Max.)
PSU ATX (Under 220mm)
FAN SUPPORT Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
Bottom: 3 x 120mm / 3 x 140mm
Rear: Up to 2x 120mm
RADIATOR SUPPORT Top: 360 / 420 / 240 / 280mm
Side: 360 / 420 / 240 / 280mm
Bottom: 360 / 420 / 240 / 280mm
I/O PORTS 1 x Power Button
1 x Reset Button
4 x USB 3.0
1 x USB Type C
1 x Audio
1 x LED Color Button
1 x LED Mode Button
DUST FILTERS 1 x Bottom
1 x Top
2 x Side
TETRADON BLACK
DIMENSIONS (D) 522mm x (W) 304mm x (H) 531.9mm
MATERIAL Steel
4.0mm Tempered Glass
Aluminum
MOTHERBOARD SUPPORT E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
EXPANSION SLOT 8
STORAGE Behind MB Tray: 3 x 2.5” SSD
Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD
GPU LENGTH CLEARANCE 460mm (Max.)
CPU COOLER HEIGHT CLEARANCE 167mm (Max.)
PSU ATX (Under 220mm)
FAN SUPPORT Top: 3 x 120mm / 3 x 140mm
Side: 3 x 120mm / 3 x 140mm
Bottom: 3 x 120mm / 3 x 140mm
Rear: Up to 2x 120mm
RADIATOR SUPPORT Top: 360 / 420 / 240 / 280mm
Side: 360 / 420 / 240 / 280mm
Bottom: 360 / 420 / 240 / 280mm
I/O PORTS 1 x Power Button
1 x Reset Button
4 x USB 3.0
1 x USB Type C
1 x Audio
1 x LED Color Button
1 x LED Mode Button
DUST FILTERS 1 x Bottom
1 x Top
2 x Side
UMBRA PRO
- Interchangeable top cover and front panel for either maximum airflow or virtually inaudible operation
- Fan and radiator brackets with integrated fan hub in front and top make installation a breeze
- 3 Silent Wings 4 PWM fans for a virtually inaudible operation and high performance
- Touch-sensitive I/O panel for state-of-the-art operation
- Generous dimensions ensure operation of E-ATX motherboards and radiators up to 420mm
- Well-conceived system for an extremely user-friendly handling
- Flexible motherboard tray for an inverted layout
- Subtle ARGB lighting in the front and the PSU Shroud
General data
Color option Black
Motherboard compatibility E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm) 604 x 254 x 539
Case size incl. stands (L x W x H), (mm) 604 x 275 x 569
Volume (l) 82.69
PSU form factor ATX PS/2
Net weight (kg) 17.8
Expansion slots 8
Maximum fan installation
Maximum fans 11
Top (mm) 3x 140 / 3x 120
Front (mm) 3x 140 / 3x 120
Side (mm) 3x 120
Rear (mm) 1x 140 / 1x 120
Bottom (mm) 1x 140 / 1x 120
PSU shroud -
Optional radiator installation
Top (mm) 120 / 240 / 360
Front (mm) 120 / 140 / 240 / 280 / 360 / 420
Side (mm) 120 / 240 / 360
Rear (mm) 120 / 140
Bottom (mm) -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 325
Maximum dimensions incl. bottom fan (mm) 325
Graphics card
HDD cage (in height of graphics card) installed (mm) 350 / 370
HDD cage (in height of graphics card) removed (mm) 495
Maximum PCIe slots with vertical graphics card (pcs.) 8
Drive bay capacity
5.25 bays (pcs.) 1
3.5 slots (scope of delivery) 2
3.5 slots (max.) 7
2.5 slots (scope of delivery) 6
2.5 slots (max.) 16
Cooling
Max.construction height of CPU cooler unit (mm) 190
Airflow channel -
Lighting
LED illumination ✓
LEDs (pcs.) 8 + 16
LED type ARGB - 5V
LEDs synchronizable with controller/motherboard ✓
I/O Panel
USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 4
USB 2.0 -
HD Audio I/O Mic + Audio
Qi charger / Quick Charging Option (W) 15
Insulation and damping
Top panel insulation mats ✓
Front panel insulation mats ✓
Side panel insulation mats ✓
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan ✓
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray ✓
Scope of delivery
Screw set (Drives/Motherboard) ✓
Additional standoffs (pcs.) 3 (for E-ATX)
SSD bracket for PSU shroud -
LED strips (pcs.) 0
Cable ties (pcs.) 12
Screw box ✓
VGA holder ✓
VGA holder for inverted layout ✓
Mesh Front Panel ✓
ODD Bracket ✓
Fan / Radiator bracket for multi mounting panel ✓
Removeable dust filters
Top -
Front 1
Side -
Bottom 1
Material
Top cover Aluminum
Front panel Aluminum
Side panel Steel
Side panel window Tempered glass
Stands Steel
LIAN LI O11D EVO RGB Automobili Lamborghini Edition
PRODUCT NAME O11D EVO RGB Automobili Lamborghini Edition
MODEL O11DERGBL
CASE TYPE Tower Chassis
COLOR Black
DIMENSIONS （D）478mm × （W）290mm ×（H）471mm
MATERIAL Steel / 4.0mm tempered glass/ Carbon Fiber
MOTHERBOARD SUPPORT E-ATX (Under 280mm)/ATX /M-ATX/MINI-ITX
EXPANSION SLOT 7
STORAGE Side Fan Bracket:2 × 3.5″ HDD or 4 × 2.5″ SSD
Behind MB Tray: 2 × 2.5″ SSD
Hard Drive Cage：2 × 3.5″ HDD or 2.5″ SSD
RADIATOR SUPPORT Top: 240mm × 1 or 360mm × 1 or 420mm × 1
Side: 240mm × 1 or 280mm × 1 or 360mm × 1
Bottom: 240mm × 1 or 280mm × 1 or 360mm × 1
FAN SUPPORT Top: 120mm × 3 or 140mm × 3
Side: 120mm × 3 or 140mm × 3
Bottom: 120mm × 3 or 140mm × 3
GPU LENGTH CLEARANCE 455.7mm（Max）
CPU COOLER HEIGHT CLEARANCE 167mm（MAX）
PSU SUPPORT ATX (Under 220mm)
I/O PORTS USB 3.0 × 2
USB 3.1 TYPE-C × 1
Audio × 1
Color Button × 1
Mode Button × 1
Brightness Button × 1
Reset Button × 1
Power Button × 1
DUST FILTER 1 × Bottom
LCD DISPLAY 5” LCD Screen
Dimension 125mm × 85mm
Resolution 800px × 480px
X-10 CASE WHITE
- 270 mm x 750 mm x 615 mm (W x H x D)
- 10.6 in x 29.5 in x 24.2 in
- Powder coated steel chassis
- Tempered glass side panel
- ATX, Micro ATX, Mini ITX,
- E-ATX, EEB
- 1x USB 3.1 GEN 2 Type-C, 4x USB 3.0, Power button, 2x Microphone, 2x Headphone, 2x Reset, RGB Control Wheel.
- Tempered Glass (also available with closed panel)
X-10 CASE BLACK
- 270 mm x 750 mm x 615 mm (W x H x D)
- 10.6 in x 29.5 in x 24.2 in
- Powder coated steel chassis
- Tempered glass side panel
- ATX, Micro ATX, Mini ITX,
- E-ATX, EEB
- 1x USB 3.1 GEN 2 Type-C, 4x USB 3.0, Power button, 2x Microphone, 2x Headphone, 2x Reset, RGB Control Wheel.
- Tempered Glass (also available with closed panel)
